| Processor | |
| Supported CPU | LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel® Core™, Pentium® Gold And Celeron Processors L3 Cache Varies With CPU |
| Mainboard | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Memory | Support For DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| Storage | |
| Supported Storage | CPU: – 1 X M.2 Connector (Socket 3, M Key, Type 25110/2580 PCIe 5.0 X4/X2 SSD Support) (M2C_CPU) – 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: – 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2Q_SB) – 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) – 1 X M.2 Connector (Socket 3, M Key, Type 2280 SATA And PCIe 4.0 X4/X2 SSD Support) (M2M_SB) – 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics Support: – 1 X USB Type-C Port, Supporting USB 3.2 Gen 2 And DisplayPort Video Outputs And A Maximum Resolution Of 4096×2304@60 Hz – 1 X USB Type-C Port, Supporting USB 2.0 And DisplayPort Video Outputs And A Maximum Resolution Of 1920×1080@30 Hz – 1 X HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz |
| Audio & Microphone | |
| Audio | Realtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-Channel Support For S/PDIF Out |
| Networking & Connectivity | |
| LAN | Realtek 5GbE LAN Chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | Qualcomm Wi-Fi 7 QCNCM865 (PCB Rev. 1.0) MediaTek Wi-Fi 7 MT7927, RZ738 (PCB Rev. 1.1) Intel Wi-Fi 7 BE200 (PCB Rev. 1.2) |
| Bluetooth | BLUETOOTH 5.3 |
| Ports | |
| Slots | CPU: – 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16) The PCIEX16 Slot Operates At Up To X8 Mode When A Device Is Installed In The M2C_CPU Connector. Chipset: – 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4_1) – 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4_2) |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 2 X 8-Pin ATX 12V Power Connectors 1 X CPU Fan Header 1 X CPU Fan/Water Cooling Pump Header 4 X System Fan Headers 2 X System Fan/Water Cooling Pump Headers 3 X Addressable RGB Gen2 LED Strip Headers 1 X RGB LED Strip Header 5 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2×2 Support 1 X USB Type-C Port (DisplayPort), With USB 2.0 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Noise Detection Header 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 Module Only) 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 2 X Temperature Sensor Headers 1 X Clear CMOS Jumper |

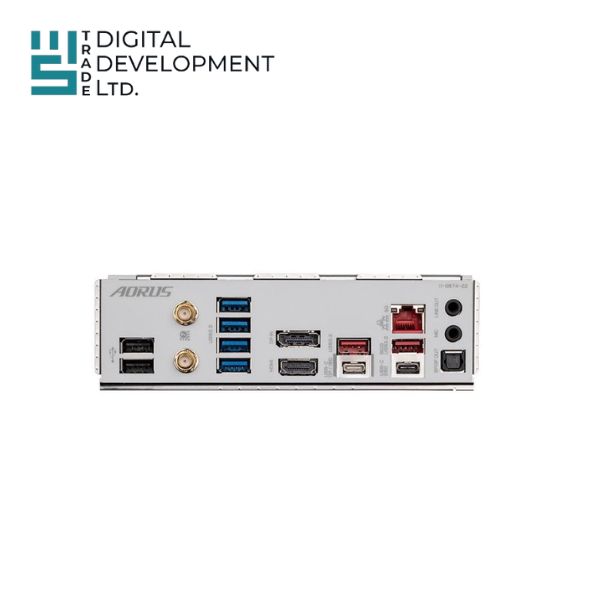

| External I/O Ports | 2 X USB 2.0/1.1 Ports 2 X SMA Antenna Connectors (2T2R) 4 X USB 3.2 Gen 1 Ports 1 X DisplayPort In Port 1 X HDMI Port 2 X USB 3.2 Gen 2 Type-A Ports (Red) 1 X USB Type-C Port, With USB 3.2 Gen 2×2 Support 1 X USB Type-C Port (DisplayPort), With USB 3.2 Gen 2 Support 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| USB | Chipset: – 2 X USB Type-C Ports, With USB 3.2 Gen 2×2 Support (1 Port On The Back Panel, 1 Port Available Through The Internal USB Header) – 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support – 1 X USB Type-C Port Onboard, With USB 2.0 Support – 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel – 2 X USB 3.2 Gen 1 Ports Available Through The Internal USB Header – 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+USB 3.2 Gen 1 Hub: – 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset+USB 2.0 Hub: – 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers |
| Technical Info | |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | |
| Special Features | Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control |
| Physical Specification | |
| Form Factor | ATX Form Factor; 30.5cm X 24.4cm |
| Others | |
| Other Features | Support For Windows 11 64-Bit |
| Warranty Information | |
| Warranty | 3 Years |
